DTS 3031 / 3031 VA

Cooling units 306 W

  • Compact design, ideal for small control cabinets and larger control cabinets for the cooling of hot spots
  • Particularly suitable for the food industry and outdoor applications
  • High protection system IP 56, maintenance-free
  • NEMA 3R/4 (DTS 3031) unit with powder coated steel cover
  • NEMA 4/4X (DTS 3031 VA) unit with stainless steel cover
  • Maintains a UL tested NEMA type 3R/4 or 4/4X seal against the enclosure
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air



Side mounting


NEMA 4/4X


NEMA 3R/4


Large distance
in / out


Stainless steel


UL approved


EAC Conformity





│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE



Technical data

Data DTS 3031 (NEMA 3R/4) / DTS 3031 VA (NEMA 4/4X)
Rated voltage ± 10% AC 50/60 Hz AC 60 Hz
230 V 115 V
Cooling capacity according to EN 14511 A35/A35 306 W
Ambient temperature SC +8 … +45 °C / +46 … +113 °F
Degrees of protection according to NEMA  towards the electrical enclosure
if used as intended by the manufacturer
Condensate management integrated condensate evaporation system with safety overflow

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Product sheet English 440 KB │DOWNLOAD
Operating manual English 5.0 MB │DOWNLOAD
Data sheet 115V English, German, Spanish 350 KB │DOWNLOAD
Data sheet 230V English, German, Spanish 270 KB │DOWNLOAD
3D-model (STEP) English 3.9 MB │DOWNLOAD
Cut-out English 29 KB │DOWNLOAD
Declaration of Conformity English, German 190 KB │DOWNLOAD
Declaration of Conformity UKCA English 160 KB │DOWNLOAD
UL listed certificate English 190 KB │DOWNLOAD



Ordering details

Ordering details DTS 3031 (NEMA 3R/4) DTS 3031 VA (NEMA 4/4X)
Type Rated voltage 230 V AC 115 V AC 230 V AC 115 V AC
Standard Controller Article number 13383141355 13383144355 13383141158 13383144158



DIMENSIONS DTS 3031 / DTS 3031VA

A 135 mm
B 124 mm
C 328 mm
D 128 mm
E 146 mm
F 162 mm
X 177,8 mm
Y 393,7 mm
Z 191,4 mm



Download the new PSS software

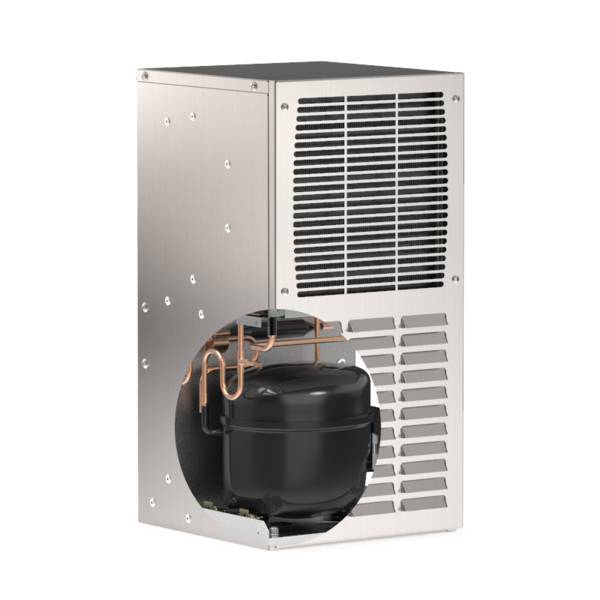

DTS 3061/3081

Cooling units 694 W

  • Compact design, ideal for small control cabinets and larger control cabinets for the cooling of hot spots
  • Particularly suitable for the food industry and outdoor applications
  • High protection system IP 56, maintenance-free
  • NEMA 3R/4 (DTS 3061) unit with powder coated steel cover
  • NEMA 4/4X (DTS 3081) unit with stainless steel cover
  • Maintains a UL tested NEMA type 3R/4 or 4/4X seal against the enclosure
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air



Side mounting


NEMA 4/4X


NEMA 3R/4


Large distance
in / out


Stainless steel


UL approved


EAC Conformity





│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE



Technical data

Data DTS 3061 (NEMA 3R/4) / DTS 3081 (NEMA 4/4X)
Rated voltage ± 10% AC 50/60 Hz AC 60 Hz
230 V 115 V
Cooling capacity according to EN 14511 A35/A35 694 W
A35/A50 428 W
Ambient temperature SC +8 … +55 °C (+46 … +131 °F) / +8 … +45 °C (+46 … +113 °F)
LAP –40 … +55 °C (–40 … +131 °F)
Degrees of protection according to NEMA  3R/4 towards the electrical enclosure
if used as intended by the manufacturer
4/4X

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Product sheet English 390 KB │DOWNLOAD
Operating manual English 5.0 MB │DOWNLOAD
Data sheet 115V English, German, Spanish 360 KB │DOWNLOAD
Data sheet 230V English, German, Spanish 350 KB │DOWNLOAD
Data sheet 460V English, German, Spanish 400 KB │DOWNLOAD
3D-model DTS 3061 (STEP) English 10 MB │DOWNLOAD
3D-model DTS 3061 460V (STEP) English 10 MB │DOWNLOAD
3D-model DTS 3081 (STEP) English 12 MB │DOWNLOAD
3D-model DTS 3081 460V (STEP) English 12 MB │DOWNLOAD
EAC certificate Russian 1.6 MB │DOWNLOAD
Declaration of Conformity English, German 190 KB │DOWNLOAD
Declaration of Conformity UKCA English 160 KB │DOWNLOAD
UL listed certificate English 190 KB │DOWNLOAD



Ordering details

Ordering details DTS 3061 DTS 3081
Type Rated voltage 230 V AC 115 V AC 230 V AC 115 V AC
Thermostat control Article number 13382341355 13382344355 13382341300 13382344300
LAP¹ Article number 13382341375 13382344375 13382341178 13382344178


¹ LAP (Low Ambient Package): includes 900 W enclosure heater and a thermostat to be placed inside the enclosure



DIMENSIONS DTS 3061 / DTS 3081

A 152,4 mm
B 230,3 mm
C 209,6 mm
D 26,1 mm
E 203,2 mm
F 225,6 mm
G 238,1 mm
H 14,3 mm
I 76,1 mm
X 255,3 mm
Y 515,2 mm
Z 274 mm



Download the new PSS software



DTS 3141/3161/3181

Cooling units 1235 W

  • Compact design, ideal for small control cabinets and larger control cabinets for the cooling of hot spots
  • Particularly suitable for the food industry and outdoor applications
  • High protection system IP 56, maintenance-free
  • NEMA 12 (DTS 3141) and 3R/4 (DTS 3161) units with powder coated steel cover
  • NEMA 4/4X (DTS 3181) unit with stainless steel cover
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
  • Integrated condensate evaporation system



Side mounting


NEMA Type 12


NEMA 3R/4


NEMA 4/4X


Large distance
in / out


Stainless steel


UL approved


EAC Conformity



│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE



Technical data

Data DTS 3141 (12) / DTS 3161 (3R/4) / DTS 3181 (4/4X)
Rated voltage ± 10% AC 50/60 Hz AC 60 Hz
400/460 V 3~ 230 V 115 V
Cooling capacity according to EN 14511 A35/A35 1235 W
A35/A50 570 W
Ambient temperature SC DTS 3141: +15 … +55 °C (+59 … +131 °F) / DTS 3161/3181: 0 … +55 °C (+32 … +131 °F) / 0 … +55 °C (+32 … +131 °F)
LAP –40 … +55 °C (–40 … +131 °F)
Degrees of protection according to NEMA 12 towards the electrical enclosure
if used as intended by the manufacturer
3R/4
4/4X

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Product sheet English 320 KB │DOWNLOAD
Operating manual English 5.0 MB │DOWNLOAD
Data sheet 115V / 230V English, German, French 250 KB │DOWNLOAD
Data sheet 400V English, German, French 250 KB │DOWNLOAD
3D-model DTS 3141 (STEP) English 13 MB │DOWNLOAD
3D-model DTS 3161 (STEP) English 13 MB │DOWNLOAD
3D-model DTS 3181 (STEP) English 13 MB │DOWNLOAD
EAC certificate Russian 1.6 MB │DOWNLOAD
UL listed certificate English 190 KB │DOWNLOAD
Declaration of Conformity English, German 190 KB │DOWNLOAD
Declaration of Conformity UKCA English 160 KB │DOWNLOAD



Ordering details

Ordering details DTS 3141
Type Rated voltage 400 V AC
Standard Controller Article number 13385436255

Ordering details DTS 3161
Type Rated voltage 400 V AC 230 V AC 115 V AC
Standard Controller Article number 13385436355 13385441355 13385444355
LAP¹ Article number 13385436375 13385441375 13385444375

Ordering details DTS 3181
Type Rated voltage 400 V AC 230 V AC 115 V AC
Standard Controller Article number 13385436158 13385441158 13385444158
LAP¹ Article number 13385436178 13385441178 13385444178


¹ LAP (Low Ambient Package): includes 900 W enclosure heater and a thermostat to be placed inside the enclosure



DIMENSIONS DTS 3141 DIMENSIONS DTS 3161 / DTS 3181

A 300 mm A 300 mm
B 310 mm B 310 mm
C 130 mm C 130 mm
D 292 mm D 292 mm
E 25 mm E 25 mm
F 228,6 mm F 228,6 mm
G 38,1 mm G 38,1 mm
H 7 mm H 7 mm
I 360 mm I 360 mm
J 265 mm J 265 mm
K 34 mm K 34 mm
L 200 mm L 200 mm
M 80 mm M 80 mm
X 395 mm X 395 mm
Y 748 mm Y 748 mm
Z 294 mm Z 294 mm



Download the new PSS software



DTS 3061 HT

High temperature cooling unit 680 W

  • Suitable for outdoor applications
  • Operation under extreme high temperature conditions (+60 °C)
  • Maintains a UL tested NEMA type 3R/4 seal against the enclosure
  • High protection system IP 56, maintenance-free
  • NEMA 3R/4 units with powder coated steel cover
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
  • Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
  • Integrated condensate evaporation system


Side mounting


NEMA 3R/4


Large distance
in / out


EAC Conformity



│MAKE A PRODUCT INQUIRY



Technical data

Data DTS 3061 HT
Rated voltage ± 10% AC 50/60 Hz
230 V
Cooling capacity according to EN 14511 A35/A35 680 W
A40/A60 265 W
Ambient temperature 0 … +60 °C / +32 … +140 °F
Degrees of protection according to NEMA 3R/4 towards the electrical enclosure if used as intended by the manufacturer
Condensate management integrated condensate evaporation system with safety overflow

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Product sheet English 450 KB │DOWNLOAD
Operating manual English 5.0 MB │DOWNLOAD
Data sheet English, German, Spanish 310 KB │DOWNLOAD
EAC certificate Russian 1.6 MB │DOWNLOAD
Declaration of Conformity English, German 190 KB │DOWNLOAD



Ordering details

DTS 3165/3185

Cooling units 1948 W

  • Particularly suitable for the food industry and outdoor applications
  • High protection system IP 56, maintenance-free
  • NEMA 3R/4 (DTS 3165) unit with powder coated steel cover
  • NEMA 4/4X (DTS 3185) unit with stainless steel cover
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated ambient air
  • Large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
  • Integrated condensate evaporation system



Side mounting


NEMA 4/4X


NEMA 3R/4


Large distance
in / out


Stainless steel
(DTS3185)


UL approved



│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE



Technical data

Data DTS 3165 (NEMA 3R/4) / DTS 3185 (NEMA 4/4X)
Rated voltage ± 10% AC 50/60 Hz
400/460 V 3~ 230 V
Cooling capacity according to EN 14511 A35/A35 1948 W
A35/A50 1045 W
Ambient temperature SC 0 … +55 °C / +32 … +131 °F
LAP –40 … +55 °C (–40 … +131 °F)
Degrees of protection according to NEMA  3R/4 towards the electrical enclosure
if used as intended by the manufacturer
4/4X
Condensate management integrated condensate evaporation system with safety overflow

Further technical details, and dimensions can be found in the download section on this page under product sheet

Downloads

Description Language Type Size Download
Product sheet English 330 KB │DOWNLOAD
Operating manual English 5.0 MB │DOWNLOAD
Data sheet 115V / 230V / 400V / 460V English, German, French 490 KB │DOWNLOAD
2D-CAD_DTS_31x5 English 1.0 MB │DOWNLOAD
Cut-out_DTS_31x5 English 200 KB │DOWNLOAD
Declaration of Conformity English, German 190 KB │DOWNLOAD
Declaration of Conformity UKCA English 160 KB │DOWNLOAD
UL listed certificate English 190 KB │DOWNLOAD



Ordering details


Ordering details DTS 3165 DTS 3185
Type Rated voltage 400/460 V AC 230 V AC 400/460 V AC 230 V AC
Standard Controller Article number 13383636355 13383639355 13383636158 13383639158
LAP¹ Article number 13383636375 13383639375 13383636178 13383639178



¹ LAP (Low Ambient Package): includes 900 W enclosure heater and a thermostat to be placed inside the enclosure



DIMENSIONS DTS 3165 DIMENSIONS DTS 3185

A 430 mm A 430 mm
B 243 mm B 243 mm
C 118 mm C 118 mm
D 11 mm D 11 mm
E 216 mm E 216 mm
F 216 mm F 216 mm
G 45 mm G 45 mm
H 17 mm H 17 mm
I 80 mm I 80 mm
J 265 mm J 265 mm
K 228 mm K 228 mm
X 304 mm X 304 mm
Y 918 mm Y 918 mm
Z 305 mm Z 305 mm
