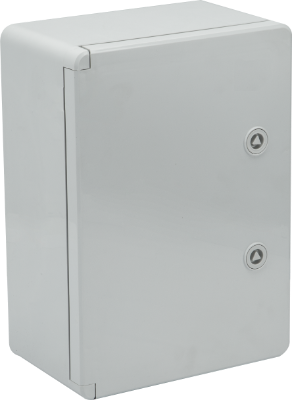

Code MB253515UV Thermoplastic watertight box, smooth door (opaque) Thermoplastic watertight box, smooth door (opaque). With metal plate.
│Price: Ask for price
COMPLEMENTARY PRODUCTS
|
 Features |
| Installation method | Surface | Door opening | Horizontal |  |
|
| Use | Industrial | Terminal block included | No | ||
| Location type | Exterior and interior |
Ticket type | Smooth sides | ||
| External dimensions (mm) (width x height x depth) |
250x350x150 | Fixation System (For surface) |
Exterior with support | ||
| Case material | Insulation | Possibility of mounting plate | Yes (included) |
||
| Frame and door material | Insulation | Valid for photovoltaic installations |
Yes | ||
| Case color | Grey (RAL7035) | ||||
| Door color | Grey (RAL7035) |
 Technical data and regulation |
| Protection Degree (IP) | IP65 | CE marking | Yes | |||||||
| Protection Degree (IK) | IK10 | UK marking | Yes | |||||||
| Impact shock resistance | Strong | CMim marking | Yes | |||||||
| Insulation class | Class II | According to Regulations UNE/EN | UNE-EN 60670-22:2007 | |||||||
| Fire resistance (GWEPT) | 650 ºC | According to REBT | Yes | |||||||
| Installation temperature | -15 ºC ; +60 ºC | According to European Directive 2014/35 / EU Low voltage directive |
Yes | |||||||
| Work stress | <1000 Vac ; 1500 Vdc | |||||||||
| UV resistance | Yes | |||||||||
| Free of halogens | Yes | |||||||||
| Suitable for saline environments | Yes |
