Quadro F12-3G/3D ATEX

Flashing lights 7.5 J

The Quadro F12 3G/3D flashing light is designed for tough demands under industrial conditions and is usable as a visual alarm. The flashing light, which is suitable for use both indoors and out, generates bright light impulses with a high attention-drawing effect

For use in potentially explosive areas in Zone 2 as per EN 60079-10-1 and Zone 22 as per EN 60079-10-2
The requirements of the EN 60079-0, EN 60079-15, EN 61241-0, EN 61241-0 (2007) and EN 61241-1 (2005) standards are fulfilled
Usable for gases in the temperature classes T1, T2, T3 and T4, as well as for non-conductive dust, provided that the surface temperature of the equipment does not exceed 105 °C

Protection system	Protection system	Impact-proof housing	Operating temperature	Warranty 10 years
24 V DC	Approved by CNBOP-PIB

│MAKE A PRODUCT INQUIRY

│PSS SIZING SOFTWARE

PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C)

	INDICATE	WARNING	ALERT
Red	51,3 x 36,5 x 49,5	22,8 x 16,2 x 22	11,4 x 8,1 x 11
Yellow	66,6 x 44,6 x 67,1	29,6 x 19,8 x 29,8	14,8 x 9,9 x 14,9
Green	43,2 x 28,4 x 42,8	19,2 x 12,6 x 19	9,6 x 6,3 x 9,5
Amber	59,4 x 42,8 x 58,1	26,4 x 19 x 25,8	13,2 x 9,5 x 12,9
Blue	44,1 x 31,5 x 42,8	19,6 x 14 x 19	9,8 x 7 x 9,5
White	70,2 x 47,3 x 71,1	31,2 x 21 x 31,6	15,6 x 10,5 x 15,8
Clear	80,1 x 57,2 x 77,4	35,6 x 25,4 x 34,4	17,8 x 12,7 x 17,2

Technical data

Electrical data	Quadro F12-3G/3D ATEX
Rated voltage	230 V AC	115 V AC	24 V DC
Rated frequency	50/60 Hz	50/60 Hz	-
Operating range	195–253 V	95–127 V	18–30 V
Nominal current consumption	90 mA	140 mA	360 mA
Initial current limited to	<7 A / 150 μs	<7 A / 150 μs	<5 A / 2 ms

Choose a lens in one of the following colours: clear, white, yellow, amber, red, green, blue

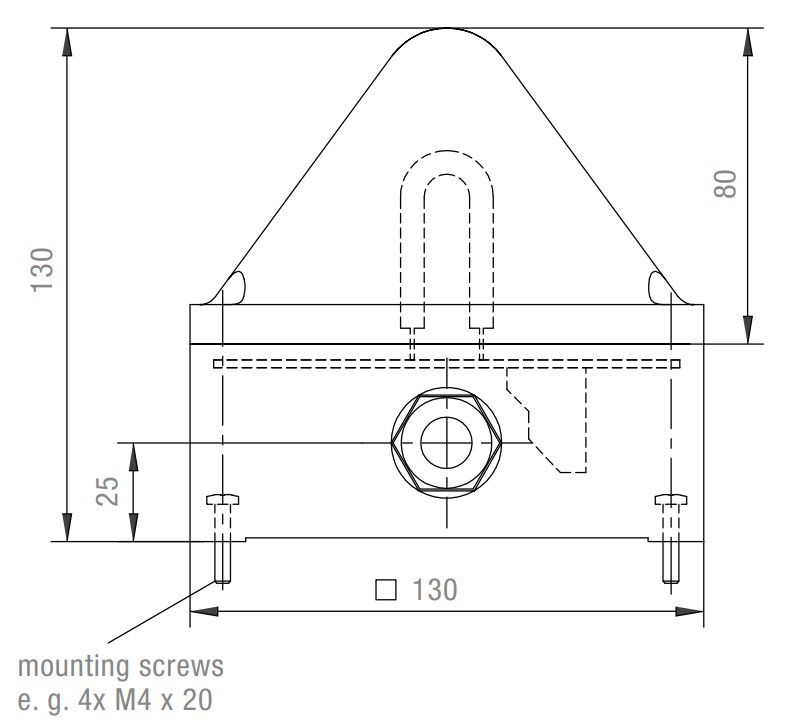

Further technical details and dimensions can be found in the download section on this page under product sheet

Downloads

Description	Language	Type	Size	Download
CE Declaration of conformity Quadro F12 -3G/3D	English, German		45 KB	│DOWNLOAD
UKCA Declaration of conformity	English		32 KB	│DOWNLOAD
Product sheet	English		180 KB	│DOWNLOAD
Operating manual QUADRO 3G/3D	English, German, French		380 KB	│DOWNLOAD
3D-Model F12 (IGS)	English		310 KB	│DOWNLOAD
3D-Model F12 (SAT)	English		190 KB	│DOWNLOAD
3D-Model F12 (STEP)	English		190 KB	│DOWNLOAD
Type Examination Certificate	English, German		2.4 MB	│DOWNLOAD
EN 54-23 EU certificate	English, Polish		2.2 MB	│DOWNLOAD
CNBOP certificate	Polish		1.0 MB	│DOWNLOAD

Ordering details

Ordering details		Quadro F12-3G/3D ATEX
Lens colour	Rated voltage	230 V AC	24 V DC
Clear	Article number	21041101008	21041801008
Yellow	Article number	21041103008	21041803008
Amber	Article number	21041104008	21041804008
Red	Article number	21041105008	21041805008
