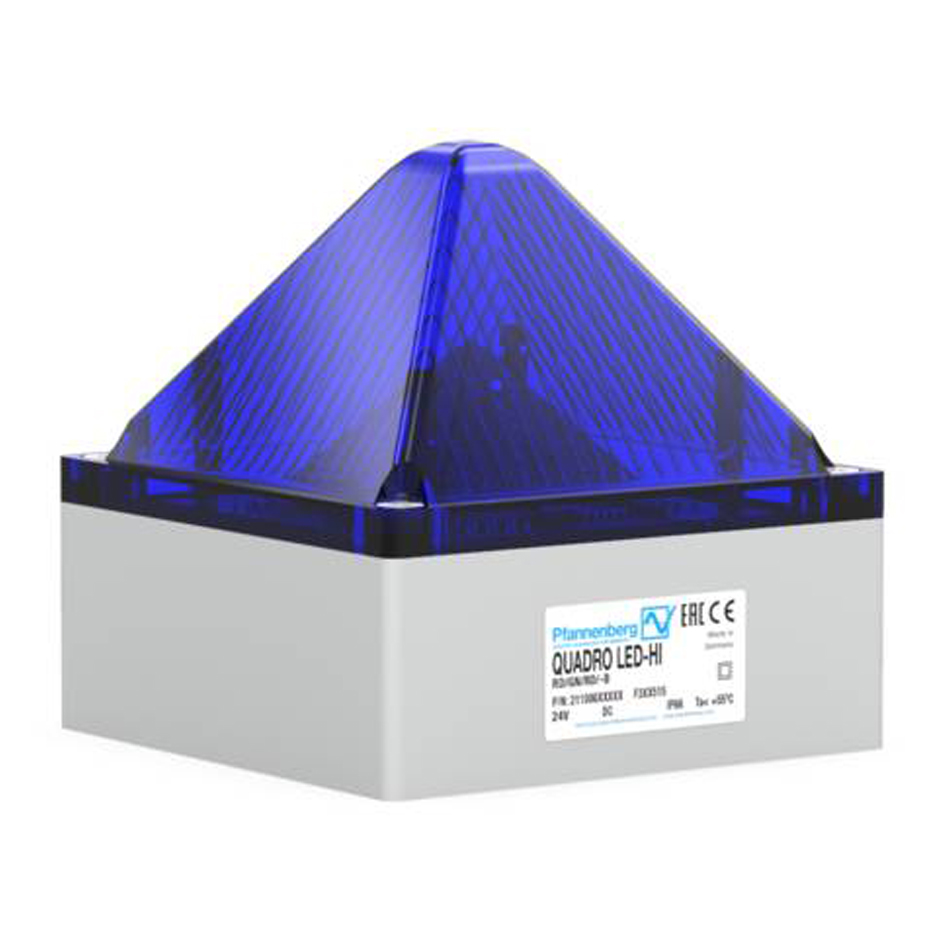

Quadro LED-Hi

LED light

Extreme bright 75 cd LED light with large signaling effect, brightness adjustable

  • Designed for tough requirements under industrial conditions
  • Suitable for indoor and outdoor use
  • Extremely insensitive to shock and vibration
  • Internally and externally (DC) selectable operating mode as standard
  • 3 different signal options can be selected:
  • Continuous light
  • Blinking light
  • Flashing light
  • 24 V DC devices as standard with soft-start module
  • Inexpensive and flexible; wide range power supplies as Standard, even for high DC voltages applicable (90–253 V DC)


Protection
system


Impact-proof
housing


Operating
temperature


Connector
(option)


EAC
conformity


Warranty



MAKE A PRODUCT INQUIRY

PSS SIZING SOFTWARE



PFANNENBERG 3D-COVERAGE

Size of visual coverage in meter (A x B x C)

  INDICATE WARNING ALERT
Red 38,7 x 32 x 40,5 17,2 x 14,2 x 18 8,6 x 7,1 x 9
Yellow 41,4 x 35,6 x 46,8 18,4 x 15,8 x 20,8 9,2 x 7,9 x 10,4
Green 37,8 x 29,7 x 37,8 16,8 x 13,2 x 16,8 8,4 x 6,6 x 8,4
Amber 36 x 27,5 x 34,7 16 x 12,2 x 15,4 8 x 6,1 x 7,7
Clear 47,7 x 35,6 x 46,8 21,2 x 15,8 x 20,8 10,6 x 7,9 x 10,4


Technical data

Electrical data Quadro LED-Hi
Rated voltage 115/230 V AC/DC 24/48 V DC
Rated frequency 50/60 Hz -
Operating range 90–253 V 11–60 V
Nominal current consumption 50 mA @ 230 V AC 165 mA @ 24 V DC


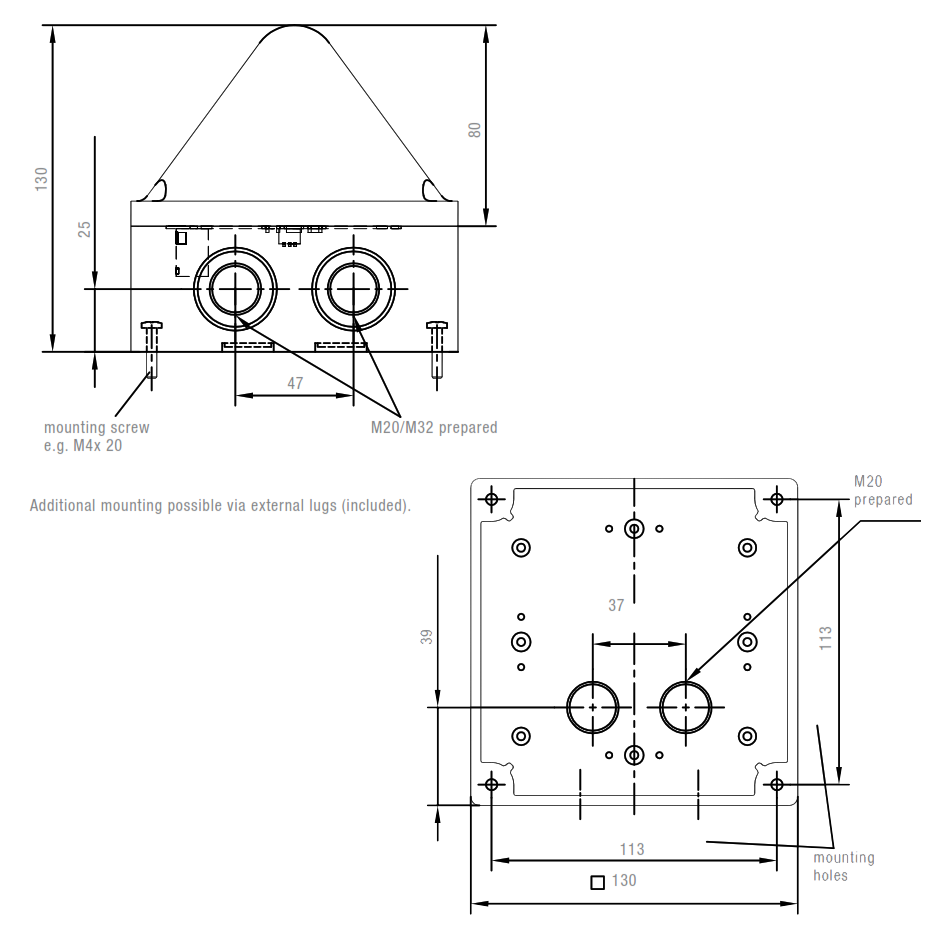

Further technical details and dimensions can be found in the download section on this page under product sheet


Downloads

Description Language Type Size Download
Declaration of conformity CE English, German 41 KB DOWNLOAD
Declaration of conformity UKCA English 30 KB DOWNLOAD
Product sheet English 830 KB DOWNLOAD
Quick Guide QUADRO LED Hi English, German, French, Russian, Italian 920 KB DOWNLOAD
Operating manual QUADRO LED Hi English, German, French, Russian, Italian 1.1 MB DOWNLOAD
3D-Model (IGS) English 310 KB DOWNLOAD
3D-Model (SAT) English 190 KB DOWNLOAD
3D-Model (STEP) English 190 KB DOWNLOAD
EPLAN macro EDZ English 1.3 MB DOWNLOAD
EAC certificate Russian 300 KB DOWNLOAD



Ordering details

Ordering details Quadro LED-Hi
Lens colour Rated voltage 115/230 V AC/DC 24/48 V DC
Yellow Article number 21108643000 21108633000
Amber Article number 21108644000 21108634000
Red Article number 21108645000 21108635000



Choose a lens in one of the following colours: clear, white, yellow, amber, red, green, blue

Article numbers for products with further lens colours and voltages on request
