665

External dimensions: Ø77x40 mm
Internal dimensions: Ø70x35 mm
Cones: 4x Ø20(M20)
Colour: grey (RAL 7035)
Protection degree: IP55/IK07
Material: ABS
Standards: EN 60670-22
Available: yes

Conformity declaration
Data sheet

│Price: 1,10 €

100665

External dimensions: Ø77x40 mm
Internal dimensions: Ø70x35 mm
Cones: 4x Ø20(M20)
With 4 holes for M20 cable glands
Colour: grey (RAL 7035)
Protection degree: IP55/IK07
Material: ABS
Standards: EN 60670-22
Available: yes

Conformity declaration
Data sheet

│Price: 1,30 €

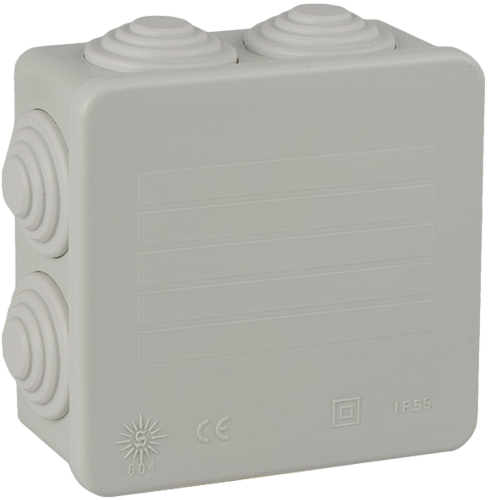

604

External dimensions: 90x90x40 mm
Internal dimensions: 80x80x35 mm
Cones: 7x Ø20(M20)
Colour: grey (RAL 7035)
Protection degree: IP55/IK07
Material: ABS
Standards: EN 60670-22
Available: yes

Conformity declaration
Data sheet

│Price: 1,30 €

615

External dimensions: 110x110x50 mm
Internal dimensions: 100x100x45 mm
Cones: 7x Ø25(M25)
Colour: grey (RAL 7035)
Protection degree: IP55/IK07
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 1,90 €

715

External dimensions: 110x110x60 mm
Internal dimensions: 100x100x55 mm
Cones: 7x Ø25(M25)
Colour: grey (RAL 7035)
Protection degree: IP55/IK08
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 2,40 €

616

External dimensions: 165x120x60 mm
Internal dimensions: 153x110x55 mm
Cones: 8x Ø25(M20)+2x Ø32(M32)
Colour: grey (RAL 7035)
Protection degree: IP55/IK08
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 4,30 €

716

External dimensions: 160x120x71 mm
Internal dimensions: 153x110x65 mm
Cones: 8x Ø25(M25)+2x Ø32(M32)
Colour: grey (RAL 7035)
Protection degree: IP55/IK08
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 4,10 €

717

External dimensions: 165x145x84 mm
Internal dimensions: 160x135x70 mm
Cones: 8x Ø32(M32)+2x Ø40(M40)
Colour: grey (RAL 7035)
Protection degree: IP55/IK08
Material: ABS
Standards: EN 60670-22
Available: yes

Conformity declaration
Data sheet

│Price: 5,10 €

686

External dimensions: 230x180x88 mm
Internal dimensions: 220x170x80 mm
Cones: 12x Ø32(M32)+2x Ø40(M40)
Colour: grey (RAL 7035)
Protection degree: IP55/IK09
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 7 €

686A

External dimensions: 220x170x140 mm
Internal dimensions: 210x160x130 mm
Cones: 12x Ø32(M32)+2x Ø40(M40)
Colour: grey (RAL 7035)
Protection degree: IP55/IK08
Material: ABS
Standards: EN 60670-22
Available: on request

Conformity declaration
Data sheet

│Price: 10,50 €

100888

External dimensions: 320x250x135 mm
Internal dimensions: 310x240x125 mm
Cones: 4xØ32(M32)+2xØ40(M40)+6xØ50(M50)
Colour: grey (RAL 7035)
Protection degree: IP55/IK09
Material: ABS
Standards EN 60670-22
Available: yes

Conformity declaration
Data sheet

│Price: 20,30 €
